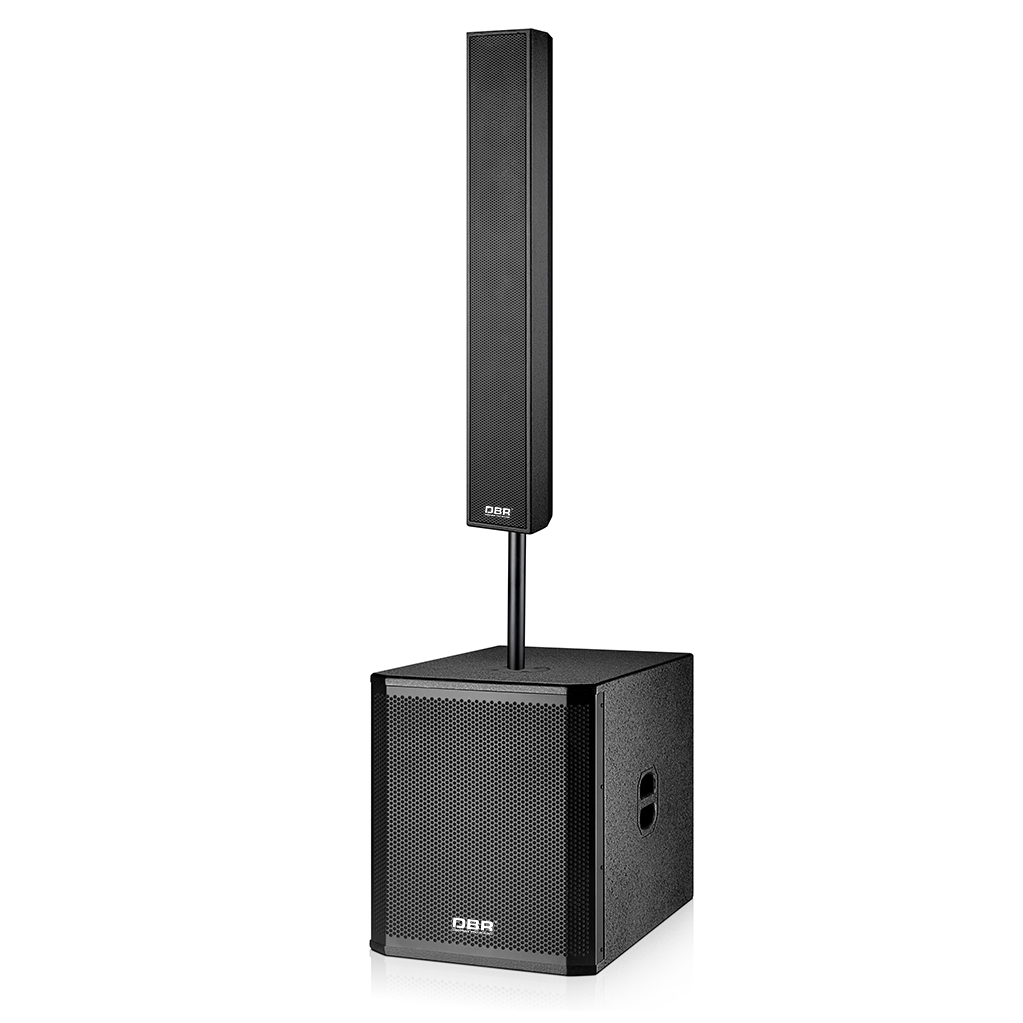

5"高档水性黑点喷漆音柱 250w 压缩驱动器高音100磁34芯 6个5"90磁25芯全频单元
技术指标 Technical data :
型号 Model :DX-507
类型 TYPE :无源2分频系统 passive 2-way system
频率响应 Frequency response:125Hz-18KHz(±3dB)/115Hz-20KHz(±10dB)
低高音单元配置 LF/HF driver
LF:6*5"(127mm)/1"(25mm音圈)voice coil
HF:1*1"(25mm)exit/1.34"(34mm音圈)voice coil
标称阻抗 Nominal Impedance 6ohm
灵敏度 Sensitivity:93dB SPL
功率 Power Rating:350W (AES)
最大声压级 Maximum Output:106dB SPL/112dB SPL peak
标称覆盖角 Nominal Coverage:80°x 70°
连接插座Connectors:2 Neutrik NL4MP
插脚连接(输入)1+/1- PIN CONNECTIONS (INPUT) 1+/1-
插脚连接(链接)1+/-至1+/- PIN CONNECTIONS (LINK) 1+/- to 1+/-
单15"有源低音炮450W 1*15"(381mm) 布边大功率超低音单元190磁75芯
技术指标 Technical data :
型号 Model:DX-15B
系统 System:有源低音炮 Active SUB
频率响应 Frequency response 30Hz-300Hz(±3dB)/25Hz-350Hz(±10dB)
低高音单元配置 LF driver
LF:1*15"(381mm)/3"(75mm音圈)voice coil 布边大功率超低音单元
阻抗 Nominal Impedance 4ohm
灵敏度 Sensitivity:96dB SPL
功率 Power Rating:450W (AES)
最大声压级 Maximum Output 118dB SPL/124dB SPL peak
连接插座Connectors :2 x XLR in parallel
Pin 1 = ground
Pin 2 = signal +
Pin 3 = signal –
2 x Powercon® 230 V
